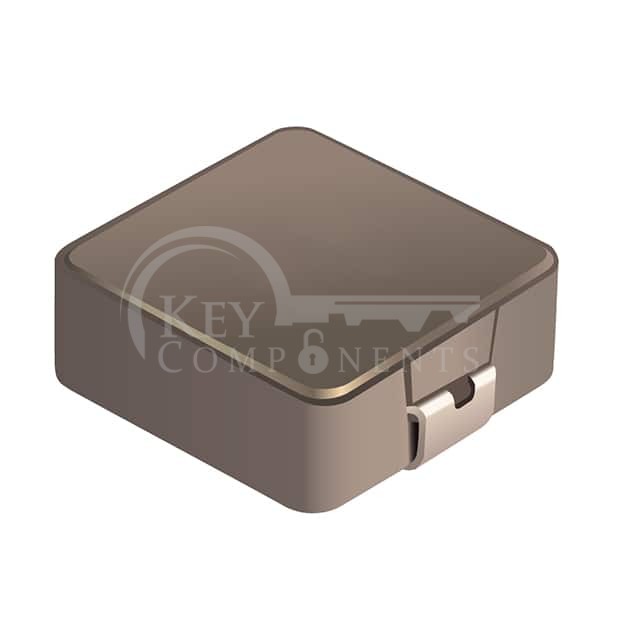

SRP1040VA-1R0M
| Ishlab chiqaruvchi qismi | SRP1040VA-1R0M |
|---|---|
| Ishlab chiqaruvchi | Bourns Inc. |
| Tavsif | FIXED IND 1UH 27A 3.07 MOHM SMD |
| Turkum | induktorlar, bobinlar, choklar |
| RoHS | Qo'rg'oshinsiz / RoHSga mos keladi |
| Kafolat | 365 kun |
| Tafsilotli ro'yxat | - |
Mahsulot atributlari
| Turi | Tavsif |
|---|---|
| mahsulot holati: | Active |
| turi: | Drum Core, Wirewound |
| material - yadro: | Metal |
| induktivlik: | 1 µH |
| bag'rikenglik: | ±20% |
| joriy reyting (amper): | 27 A |
| joriy - to'yinganlik (isat): | 29A |
| ekranlash: | Shielded |
| DC qarshilik (dcr): | 3.07mOhm Max |
| q @ chastotasi: | 15 @ 100kHz |
| chastota - o'z-o'zidan rezonans: | 44MHz |
| reytinglar: | AEC-Q200 |
| ish harorati: | -55°C ~ 180°C |
| induktivlik chastotasi - sinov: | 100 kHz |
| Xususiyatlari: | - |
| o'rnatish turi: | Surface Mount |
| paket / quti: | Nonstandard |
| yetkazib beruvchi qurilma paketi: | - |
| o'lcham / o'lcham: | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| balandligi - o'tirgan (maksimal): | 0.157" (4.00mm) |
yuk tashish; yetkazib berish
| Yuk tashish turi | Yetkazib berish to'lovi | Bajarish vaqti | |
 |
DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
 |
Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
 |
UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
 |
TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
 |
EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
 |
REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
To'lov
| To'lov usuli | Qo'l to'lovi | |
 |
Telegraphic Transfer | charge US$30.00 banking fee. |
|
Paypal | charge 4.0% service fee. |
 |
Credit Card | charge 4% service fee. |
|
Western Union | charge US$0.00 banking fee. |
|
Money Gram | charge US$0.00 banking fee. |
Kafolatlar
- Biz 90 kun kafolat beramiz;
- Yuk tashishdan oldin tekshirish (PSI) qo'llaniladi;
- Agar siz olgan ba'zi mahsulotlar mukammal sifatga ega bo'lmasa, biz sizning to'lovingizni qaytarish yoki almashtirishni mas'uliyat bilan tartibga solamiz. Lekin buyumlar asl holatida qolishi kerak;
- Agar siz mahsulotni 25 kun ichida olmagan bo'lsangiz, bizga xabar bering, yangi paket yoki almashtirish chiqariladi.
- Agar sizning mahsulotingiz mahsulot tavsifidan sezilarli darajada farq qilsa, siz A: Uni qaytarib berish va to'lovni to'liq qaytarib olish yoki B: To'lovni qisman qaytarib olish va mahsulotni saqlashingiz mumkin.
- Soliqlar va QQS kiritilmaydi;
